Some sld styles.


Empty star with default marks

For this needed create three point symbolizers with star mark.





       star

        #000000


      18





       star

        #FF0000


      16





       star

        #FFFFFF


      10



All three point symbolizers pretty same, just difference in size and color. But make sure that you put a smallest makr on the top and biggest on down.

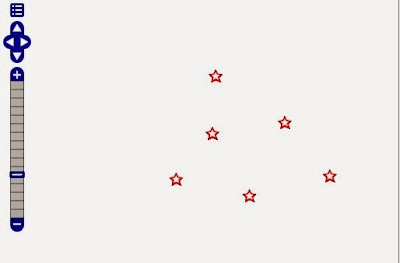

Result:


Double dashed line

It's a line dashed with two vertical lines. For this we a needed create three line symbolizers. One with line and two with vertline marks.




      #00FF00







         shape://vertline

          #00FF00
          1


        10


      10 30







         shape://vertline

          #00FF00
          1


        10


      10 30
      5



My vertlines is a 1 pixel in width and 10 pixels in lenght. Parameter stroke-dasharray set a distance bitween marks, in my case 30 pixels. Im not sure that clearly know what meen first number 10. Second mark same but with stroke-dashoffset, this paremeter make a offset from the beginning of the line.


Result:
